Manual Tilt Stages

Manual Tilt Stages

•High resolution 1-axis tilt
•Motorizable
•7.5 ̊ total range

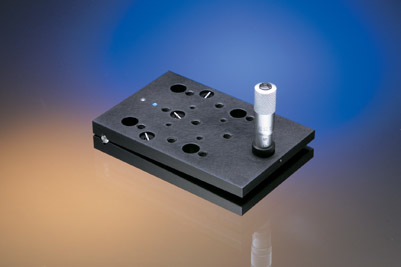

This Tilting Stage provides a controlled angular displacement of ±3.75 degrees. The stage has a pivot at one end and a tilting drive at the other. The baseplate is held in contact with the micrometer or MotorDriver head by three tension springs connecting the platforms, eliminating any backlash in the drive.
The platform position of the manual stage is controlled by a precision micrometer head which reads to 0.01 mm, where one division corresponds to 20 arcsec of displacement.
If motorization is required a Ealing Linear Actuators can be use to replace the micrometer head in the manual stage. Our linear actuators provide remote control with a resolution of 2 arcsecs and our actuators with encoders offer full motorized control from a computer with 1 arcsec resolution.

Part # Product Description Price In Stock QTYAdd to Cart
74-0386-000 Manual Tilting Stage, Metric Hole Pattern
Price €165.00
Yes
